Add Dynamic Connection dialog

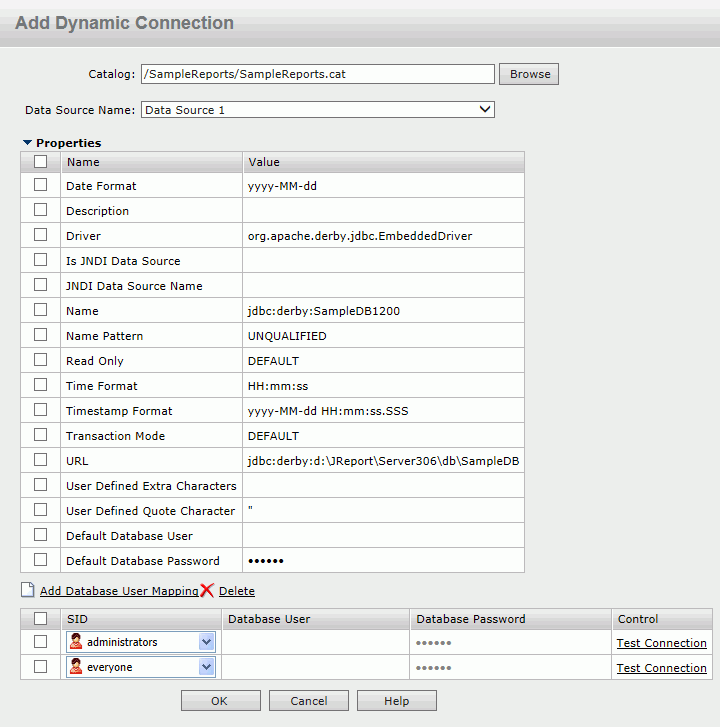

The dialog is displayed when you click the Add Dynamic Connection link in the Dynamic Connections panel. It helps you to create dynamic connections. See the dialog.

Catalog

Specifies a catalog. Type the catalog with the full resource path in the text box, for example, /WebDemo/SampleReports.cat, or click the Browse button to select a catalog in the Select Catalog dialog.

Data Source Name

Specifies a data source in the catalog from the drop-down list.

Properties

Displays the properties of the database connection. You can click it to expand or collapse the property table.

Here you can change some properties of the database connection. The table shows the values of the original connection properties initially.

• Checkbox
  After you select the checkbox for a property, you will be able to change the property value. Select the checkbox on the column header and the checkboxes for all the properties will be selected. Initially all the properties are unchecked and uneditable. Whenever a property is unchecked, it always shows the original value regardless of whether you have changed the value or not.
• Name
  Displays the property names.
• Value
  Specifies the property values.

There are the following properties:

• Date Format
  Specifies the default Date format corresponding to the database.

  Date Format and Timestamp Format

  Symbol	Meaning	Presentation
  y	year	Number
  M	month	Number
  d	day in month	Number
  H	hour in day (0~23)	Number
  h	hour in am/pm (1~12)	Number
  m	minute in hour	Number
  s	second in minute	Number
  S	millisecond	Number

  Example (using the US Locale):

  "yyyyy.MMMMM.dd hh:mm aaa" ->> 1996.July.10 12:08 PM

  Note: The Date and Timestamp format JReport supports follows that of Java. Refer to the Java API Specification java.text package DateFormat interface.

• Description
  Specifies the description of the connection.
• Driver
  Specifies the class name of the JDBC driver such as oracle.jdbc.driver.OracleDriver.
• Is JNDI Data Source
  Specifies whether it is a JNDI data source.
• JNDI Data Source Name
  Specifies the JNDI data source name when the Is JNDI Data Source property is true.
• Name
  Specifies the name of the connection.
• Name Pattern
  Specifies whether or not catalog or schema is used in data manipulation. Choose an option from the drop-down list.
  • Unqualified - Neither catalog nor schema is included in data manipulation. Example: SELECT t.c FROM t
  • Qualified_2part - Uses schema in data manipulation. Example: SELECT schema.t.c FROM schema.t
  • Qualified_3part- Uses both catalog and schema in data manipulation. Example: SELECT catalog.schema.t.c from catalog.schema.t
• Read Only
  Specifies the mode to open the connection to the JDBC data source. The initial setting is Default which uses the mode specified by the DBMS Administrator which could be read only or read & write. Choose an option from the drop-down list.
  • Default - May be read & write or read only depending on the DBMS default setting.
  • Read only - Allows the driver to optimize performance for reporting which does not need to write to the DBMS.
  • Read & write - Opens the DBMS with updates enabled which requires more processing to ensure concurrency control.
• Time Format
  Specifies the default time format corresponding to the database.
• Timestamp Format
  Specifies the default timestamp format corresponding to the database.
• Transaction Mode
  Specifies the transaction mode for the connection. Choose an option from the drop-down list.
  • Default - Indicates the transaction information cannot be got from JDBC connection.
  • None - Indicates that transactions are not supported.
  • Read_uncommitted - Dirty reads, non-repeatable reads and phantom reads can occur. This mode will speed up the transaction of the catalog.
  • Read_committed - Dirty reads are prevented; non-repeatable reads and phantom reads can occur.
  • Repeatable_read - Dirty reads and non-repeatable reads are prevented; phantom reads can occur.
  • Serializable - Dirty reads, non-repeatable reads and phantom reads are prevented.
• URL
  Specifies the JDBC URL which establishes the connection to the database, for example, jdbc:oracle:thin:@localhost:1521:ORCL.
• User Defined Extra Characters
  Specifies extra characters of user defined quote qualifier.
• User Defined Quote Characters
  Specifies the quote character of user defined quote qualifier.

• Default Database User
  Specifies the user name for connecting to the database, which is determined by the database DBA. Null means using the default database user name.
• Default Database Password
  Specifies the password for connecting with the database, which is determined by the database DBA. Null means using the default database password.

Add Database User Mapping

Adds a new database user mapping. Click to create a new line at the end of the table.

Delete

Deletes the selected database user mappings.

Database user mapping table

Checkboxes are used to specify whether or not to select the database user mapping. Select the checkbox on the column header to select all database user mappings. After you select the database user mappings, you can then delete them if you do not want them.

• SID
  Specifies the security identifier (SID). A SID can be a group, role or user in the JReport Server security system. You can select a value from the drop-down list or input the value in the text box. The x in the text box is used to clear the input text. You can define at most one database user mapping for an SID within a dynamic connection.
• Database User
  Specifies the database user name. Null means using the default database user name.
• Database Password
  Specifies the database password. Passwords are masked.
• Test Connection
  Tests whether the connection configuration works by using the database use rname and password.

OK

Creates the dynamic connection and exits the dialog.

Cancel

Cancels the creation of a dynamic connection and closes the dialog.

Help

Displays this help document.
