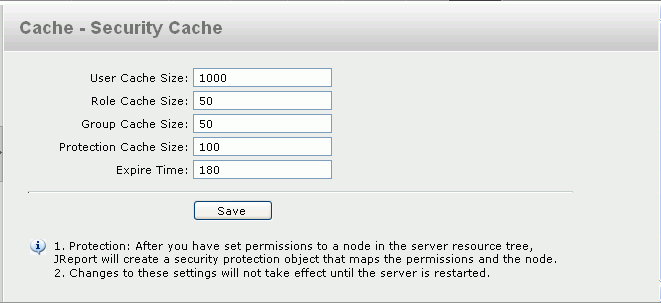

The panel is displayed after you click Cache > Security Cache on the system toolbar of the JReport Administration page. It allows you to cache security objects. See the panel.
User Cache Size
Specifies the maximum number of user objects in the security cache.
Role Cache Size
Specifies the maximum number of role objects in the security cache.
Group Cache Size
Specifies the maximum number of group objects in the security cache.
Protection Cache Size
Specifies the maximum number of ACL objects in the security cache.
Expire Time
Specifies how long the security cache will be kept for. The time is measured in seconds.
Save
Applies the changes to JReport Server.
