Library Component Properties dialog

You can set the properties of a library component in its Properties dialog according to your requirements.

The Properties dialog is divided into the following two tabs:

• General
• Permission

Reset

Discards your modifications and restores the dialog to its default status.

OK

Closes this dialog and applies the properties to the library component.

Cancel

Cancels any settings and closes the dialog.

Help

Displays this help document.

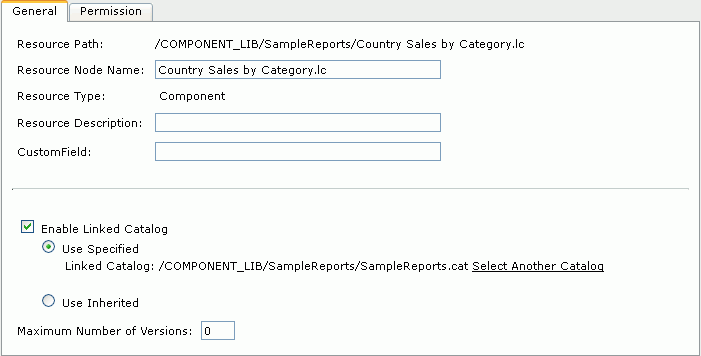

General tab

Specifies the general properties of the library component. See the tab.

Resource Path

Shows the resource path.

Resource Node Name

Specifies the name for the library component.

Resource Type

Shows the type of the resource.

Resource Description

Specifies description of the library component.

[Custom Field Name]

Specifies value of the custom field for the library component. A custom field can be regarded as a resource property and is available when it is enabled.

Enable Linked Catalog

Enables to link the library component with a catalog. If you have linked a library component with a catalog, then even if the library component and the catalog are not in the same directory, it can also run with the catalog.

• Use Specified
  Links the library component with a catalog in the server resource tree.
  • Select Another Catalog
    Specifies another catalog in the Select Another Catalog dialog.
• Use Inherited
  Links the library component with the linked catalog inherited from its parent folder. Note that if the parent level does not enable linked catalog, you are not allowed to check this option.

Maximum Number of Versions

Specifies the maximum version amount that will be listed in the version table. By default the version amount is unlimited.

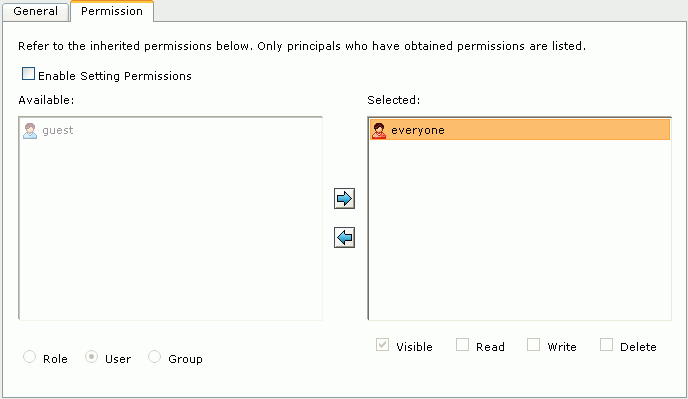

Permission tab

Specifies permissions of roles/users/groups on the library component. This tab is available when the library component is in the Public Components folder. See the tab.

Enable Setting Permissions

Enables the setting of permissions.

Available

Lists the roles/users/groups to which you can assign permissions.

• Role
  If checked, all roles will be displayed in the Available box for you to assign permissions.
• User
  If checked, all users will be displayed in the Available box for you to assign permissions.
• Group
  If checked, all groups will be displayed in the Available box for you to assign permissions.

Adds the selected role, user or group to the Selected box.

Removes the selected role, user or group from the Selected box.

Selected

Select a role/user/group in the Selected box and then select the permissions you would like the role/user/group to have on the library component. For what each permission is used for, see Permission.
