Visual Analysis Template Properties dialog

You can set the properties of a visual analysis template in its Properties dialog according to your requirements.

The Properties dialog is divided into the following two tabs:

• General
• Permission

Reset

Discards your modifications and restores the dialog to its default status.

OK

Retains the settings and submits the task to server.

Cancel

Cancels any settings and closes the dialog.

Help

Displays this help document.

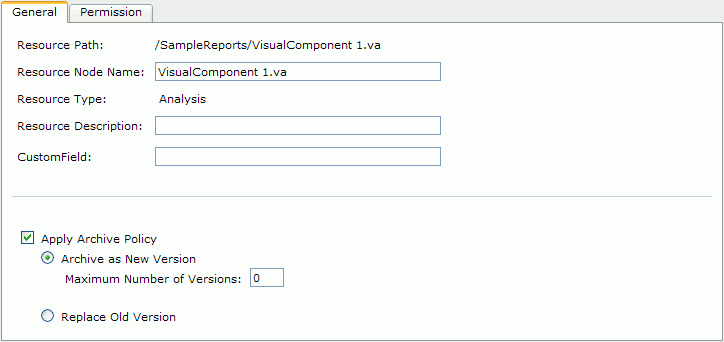

General tab

Specifies the general properties of the visual analysis template. See the tab.

Resource Path

Shows the resource path.

Resource Node Name

Specifies the name for the visual analysis template.

Resource Type

Shows the type of the resource.

Resource Description

Specifies the description for the visual analysis template.

National Language Support

Specifies whether to enable the NLS feature for the visual analysis template. This option is available when the Properties dialog is opened from the JReport Administration page.

[Custom Field Name]

Specifies value of the custom field for the visual analysis template. A custom field can be regarded as a resource property and is available when it is enabled.

Apply Archive Policy

Applies an archive policy to the visual analysis template versions.

• Archive as New Version
  Specifies whether to use multiple versions for the visual analysis template. Available only for versions in the resource tree.
  • Maximum Number of Versions
    Specifies the maximum version amount that will be listed in the version table. By default the version amount is unlimited.
• Replace Old Version
  Specifies to replace the old version when a new version is generated.

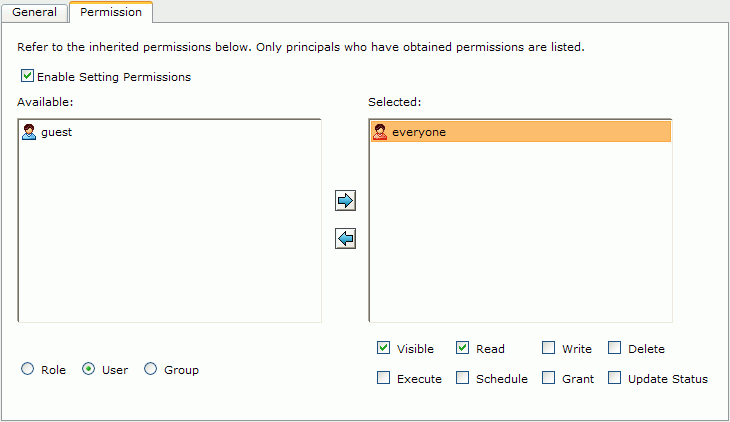

Permission tab

Specifies permissions of roles/users/groups on the visual analysis template. This tab is available when the visual analysis template is in the Public Reports folder. See the tab.

Enable Setting Permissions

Enables the setting of permissions.

Available

Lists the roles/users/groups to which you can assign permissions.

• Role
  If checked, all roles will be displayed in the Available box for you to assign permissions.
• User
  If checked, all users will be displayed in the Available box for you to assign permissions.
• Group
  If checked, all groups will be displayed in the Available box for you to assign permissions.

Adds the selected role, user or group to the Selected box.

Removes the selected role, user or group from the Selected box.

Selected

Select a role/user/group in the Selected box and then select the permissions you would like the role/user/group to have on the visual analysis template. For what each permission is used for, see Permission.
