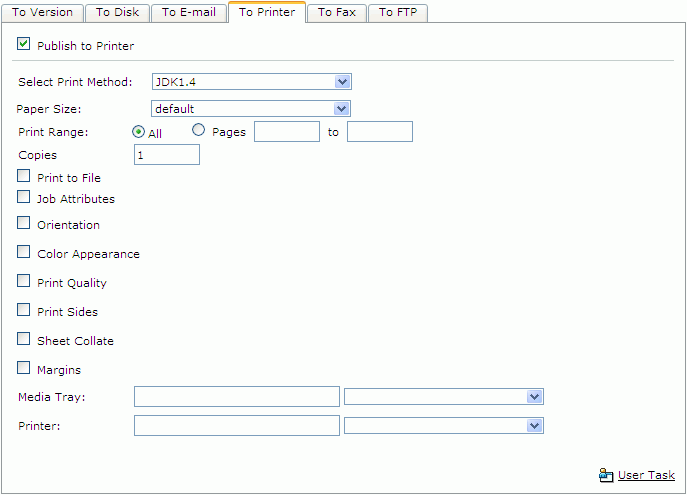

To Printer

This tab is for you to specify settings for publishing report results to a printer. See the tab.

Publish to Printer

Specifies to publish the report result to a printer.

Select Print Method

Specifies the printing method to print the report result.

Printer

Specifies the name with the path of the printer. You can type it in the box or select it from the drop-down list.

When JDK1.4 is selected in the Select Print Method drop-down list, the following options will be available.

Paper Size

Specifies the paper size.

Print Range

Specifies the pages to be printed.

Copies

Specifies the number of copies you want to print. The number of copies will be applied to all specified pages.

Print to File

Prints the document to a file instead of a printer. This kind of files can only be opened and printed by serial port printer on Windows via DOS command.

• File Name
  Specifies the name of the file to which you print. If no path is provided in the file name, the file will be saved to the working directory of the server.

Job Attributes

Specifies the properties of the print task.

• Priority
  Specifies the print priority for this task.
• Job Name
  Specifies the name of the print task.
• User Name
  Specifies the name of the user.

Orientation

Specifies the orientation for the printed reports.

• Landscape
  Prints your reports in a Landscape orientation.
• Portrait
  Prints your reports in a Standard letter orientation.
• Reverse Landscape
  Prints your reports in a Reverse Landscape orientation.
• Reverse Portrait
  Prints your reports in a Reverse Portrait orientation.

Color Appearance

Specifies to print the reports in Monochrome or in Color.

Print Quality

Specifies the print quality. It can be Draft, Normal, or High.

Print Sides

Specifies the print sides for the printed reports.

• One Side
  Imposes each consecutive print-stream page upon the same side of consecutive media sheets.
• Duplex
  Imposes each consecutive pair of print-stream pages upon the front and back sides of consecutive media sheets, such that the orientation of each pair of print-stream pages on the medium is correct for the reader as if for binding on the long edge.
• Tumble
  Imposes each consecutive pair of print-stream pages upon front and back sides of consecutive media sheets, such that the orientation of each pair of print-stream pages on the medium is correct for the reader as if for binding on the short edge.

Sheet collate

Specifies the printing order for printing multiple-page reports.

• Collated
  If selected, when you print two copies of a three-page report, the page order is 1, 2, 3; 1, 2, 3.
• Uncollated
  If selected, when you print two copies of a three-page report, the page order is 1, 1; 2, 2; 3, 3.

Margins

Specifies the paper margins for the printed reports (MM or Inch).

Media Tray

First select a printer, and then from the drop-down list, specify the media tray.
