Specifying parameter values

When running or scheduling reports with parameters, you may need to specify values for the parameters. The way to specify a parameter value varies with the type and properties of the parameter. Here are several ways you can use to specify parameter values:

• In the parameter value combo box, input the value manually or select the required one from the drop-down list. If you have chosen to automatically save parameter values, the saved value groups will be available on the top of the parameters' value lists for selection.
• Select or unselect the checkbox to specify a Yes/No value.
• Click the button to specify multiple values in the Enter Values dialog.
• Click the calendar button to specify a date and time value using either calendar or expression in the Calendar dialog. If you use an expression to specify the value, when you hover the mouse pointer over this value, a tip will appear showing its expression. Click on the value, the expression will be displayed in the value text box and you can edit the expression in the text box directly if you want. After editing, when you click elsewhere outside of the value text box:
  • If the edited expression is correct, a new value calculated by the expression will be displayed in the parameter value text box.
  • If the edited expression is wrong, no value will be created and the expression itself will be displayed and highlighted in red in the value text box. Correct the expression, or click the calendar button to specify a value.
• Click the Use Saved Values button and select a previously saved parameter value group to apply to the report. For details, see Manually saving parameter values.

This document also introduces some useful techniques for setting parameter values.

Saving parameter values for reuse

When specifying parameter values for reports, you may want to save the specified parameter values for reuse next time. JReport provides two ways of saving. One is users decide when and which parameter values to save, the other is JReport saves each applied or submitted parameter values automatically. When the saved number in either way reaches the maximum, the oldest record will be removed. The number is calculated on a user-report basis. Take a report with two parameters for an example, supposing the maximum number is set to 3. Each user can save at most three groups of parameter values for the report. Each group contains the values of the two parameters.

To switch on the function of saving parameter values, go to the Profile > Customize Server Preferences > Advanced tab, select Yes to the option Enable Saving Parameter Values, select a way to do the saving: Manually or Automatically, and then specify a maximum number to limit the saved value groups which is called the auto complete parameters list for each user-report pair.

Manually saving parameter values

When you have chosen to manually save parameter values, the Use Saved Values button will be available on the upper right corner of the parameter page. By clicking this button, you will get the following:

• Value List
  The value list contains all the parameter value groups you have saved for the report. Select a group to apply all the values in the group to the corresponding parameters. You can also remove any of the unwanted value group by selecting it from the list and then clicking next to the value list.
• Save Values
  Saves the current displayed parameter values as a group for reuse afterwards. To do this, type a name for the saved group in the text box which shows "Save current values into list" and then click the Save Values button . The saved group will then be added into the value list above. Once it reaches the maximum number, the latest group will replace the oldest.

Using automatically saved parameter values

When you have chosen to automatically save parameter values, each time a user submits a group of parameter values to a report, the group is saved by JReport automatically. The next time the same user runs the report, the auto saved parameter values will be available in the parameters' value lists for selection on the parameter page.

Customizing default parameter values

When specifying parameter values for a report, if you would like the current specified parameter values to be saved as the default values for the parameters next time when you run or schedule the report, select the Save as default option on the parameter page (to make this option available, you need to make sure the Enable Setting Default Parameter Values For option is selected for the corresponding resource in the Profile > Customize Server Preferences > Advanced tab).

If you want the saved default parameter values to be applied directly to the report next time when you run it without popping up the Enter Parameter Values dialog, select the option Do not show the screen again in the dialog (to make this option available, you need to make sure the Enable Hiding Initial Parameter Dialog For option is selected for the corresponding resource in the Profile > Customize Server Preferences > Advanced tab). However, if the last-time saved default values cannot completely match the current report parameters, the dialog will still be displayed. This option only hides the parameter dialog popped from operation on the console. It does not affect the case of running report using URL way.

In addition, JReport provides you with the Parameter Settings dialog which allows you to pre-customize the default parameter values for a report before running it. This dialog can also be used to show the Enter Parameter Values dialog again after it has been hidden. To do this, check Re-enable Parameter Screen in the dialog.

The above options are user-report level settings, that is to say, they take effect when both the same user and report are matched. This also applies to admin users, and therefore admin cannot customize the settings for all users.

Using built-in functions to set date and time parameter values

For a parameter of the Date, DateTime, or Time type, you can customize a dynamic date and time value by creating an expression using built-in functions.

To do this:

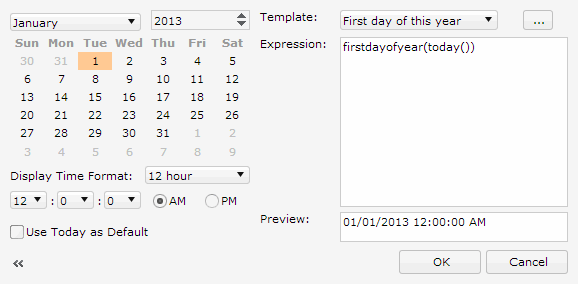

1. In the places where you are able to specify a value for the parameter, you may see the calendar button . Click this button and the Calendar dialog is displayed. See the dialog.



2. The Template drop-down list on the right provides some predefined expressions for you to use. You can customize your own expression either based on an existing template or by directly editing the contents in the Expression text box.

   If you cannot see the Template label on the right, click >> on the bottom left corner.

3. JReport's built-in Date/Time formula functions are available for inserting into your expression. To make use of them, click to display the functions.
4. The Preview box calculates the result of the current expression. Each time you modify the expression, you can click in the box to refresh the result. If it is an invalid expression, an error message will be shown in the box and no change will be made to the calendar and the currently selected date/time will be remained in the calendar.
5. When done, click OK to add the value.

See also Calendar dialog for additional help about the options in the dialog.

When running reports via URLs, you can also use expressions to specify date and time parameter values. The format is Parameter_Name={"exp":"Complete_Expression_String", "SelectedDate":"'MM/dd/yyyy"}. If the expression does not contain the function SelectedDate(), there is no need to add this part - "SelectedDate":"'MM/dd/yyyy" and the format is Parameter_Name={"exp":"Complete_Expression_String"}. For example, to specify p_EndDate=today(), write it as p_EndDate={"exp":"today()"}. The following is an example of running the CustomerAnalysis.cls:

http://localhost:8888/jinfonet/runReport.jsp?jrs.cmd=jrs.web_vw&jrs.catalog=%2fSampleReports%2fSampleReports.cat&jrs.report=%2fSampleReports%2fCustomerAnalysis.cls&jrs.param$P_StartDate=01/01/2010&jrs.param$p_EndDate={"exp":"today()"}&jrs.result_type=8
